ALOGIC USB-C and USB 3.0 Triple Display Docking Station 4K & Power Delivery 80W

• Tripple 4K screens
• USB-C & USB 3.0 hybrid hub
• 80W Power Delivery
• Gigabit Ethernet
• HDMI
• DisplayPort

The Alogic UCD3D34K-H is a triple display hybrid dock which works with both USB-C and USB 3.0 enabled computers allowing users to set up an efficient and effective multi-display workspace at office or home.

The hybrid feature of the dock makes it perfect for office use in a Hot Desking environment where both USB 3.0 and USB-C devices are in use.

Only USB-C/Thunderbolt 3 enabled computers are capable of triple display functionality. The dock will output up to dual displays for USB 3.0 enabled computers

Triple 4K Display Output

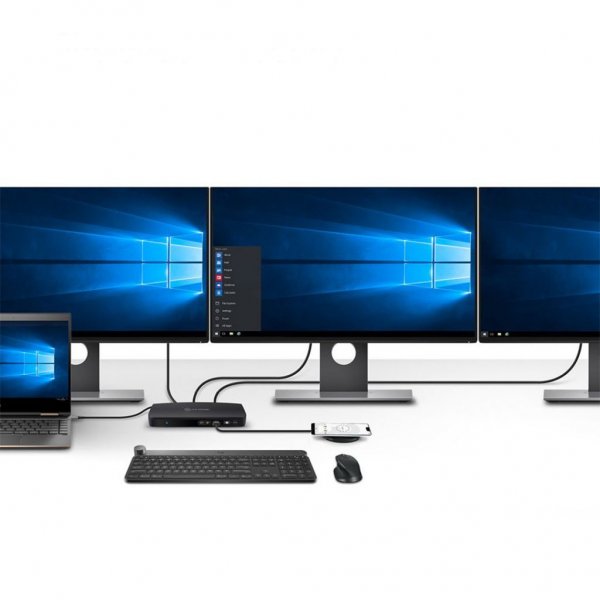

The versatile dock allows you to connect three monitors to a USB-C notebook simultaneously through the (1) HDMI and (2) DisplayPort outputs on the dock to EXTEND OR MIRROR the content.

The maximum resolution supported with triple display use is 3840 x 2160@60Hz for two DisplayPort outputs and 3840 x 2160@30Hz for the HDMI output.

Only USB-C/Thunderbolt 3 enabled computers are capable of triple display functionality. The dock will output up to dual displays for USB 3.0 enabled computers

Universal Dock: Hybrid USB-C & USB 3.0

The dock connects to your USB-C enabled laptop by just one single USB-C cable to charge your laptop, transfer data, connect Three monitors, Gigabit Ethernet and an audio device at the same time. The docking station supports USB-C PD(Power Delivery) and can charge your laptop with up to 80W of power through the USB-C connection.

The dock also connects to a USB 3.0 enabled computer through a USB 3.0 (USB-A) port and supports up to Three monitors, Gigabit Ethernet, USB Hub and Audio.

Gigabit Ethernet & USB Expansion

The dock also features a gigabit ethernet port to enable connection to a wired network. The dock has four USB (USB-A) ports (2 * USB 2.0 & 2 * USB 3.0) for connecting all your accessories such as a mouse, keyboard, hard drive, printers etc. The dock has a USB-C port to charge and sync your latest USB-C phone or accessories. The 3.5mm audio jacks enables you to connect a headphone & mic with ease.

DisplayPort Multi-Stream Transport (MST) & DisplayLink

The dock is powered by hybrid technology of USB-C MST technology for DisplayPort & DisplayLink, The combination of two powers all the different functions of the dock. The dock can intelligently chooses to use either one or a combination of both to power your peripherals without any intervention from the user. The hybrid technology enables a plug and play install in most cases but may need driver install with USB 3.0 and macOS computers.

Physical Characteristics: Colour: Black | Dimensions: 220(L) X 90(W) X 28(H) mm

Warranty: 2 year

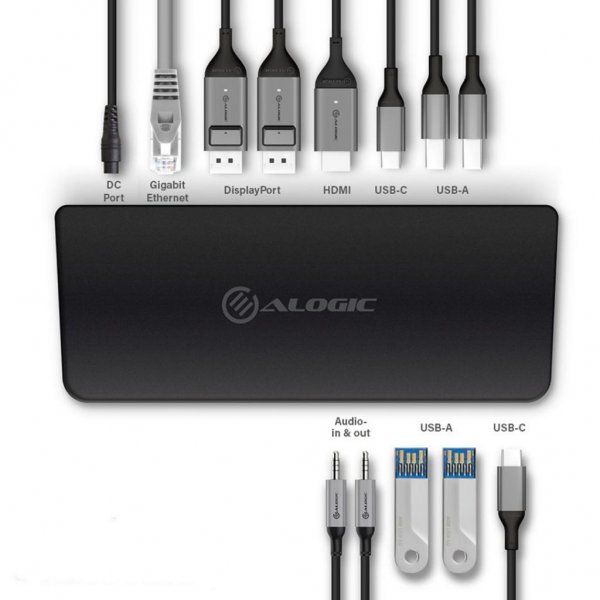

Output: USB-A (USB 2.0) x 2, USB-A (USB 3.0) x 2, USB-C x 1, HDMI x 1, DisplayPort x 2, Gigabit Ethernet x 1, Audio-in x 1, Audio-out x 1 | Inputs: 1 X USB-C Male | LED: 1 X Power LED Indicator, Power-on colour: Blue

Input: 1 x USB-C

Compatibility: USB-C Ports with DP alt Mode or USB 3.0 Port | Chromebook |OS Support: Windows 10 & above and Mac OS Sierra & Above

Resolution: Single display - DP 1: 3840x2160@60Hz, DP 2: 3840x2160@60Hz, HDMI: 3840x2160@30Hz | Multiple display - DP 1: 3840x2160@60Hz, DP 2: 3840x2160@60Hz, HDMI: 3840x2160@30Hz

Audio: 2.1 CH

För att ladda ner Mac OSX USB-drivrutiner klicka här
